Solid S/FTP Cat6a Ethernet Lan Cable 23Awg High Speed For Networking

Payment Terms:	T/T,L/C,WU
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean,Land,Air

Packing: 305m/Box

Application: Networking

Brand Name: TESO

Operating Temperature: -20°C - +75°C (-4°F - +167°...

Certification: UL,CE ,ROHS

Product Name: Ethernet Lan Cable

AWG: 23AWG

item: cat6a

Production Capacity: 200km/day

Delivery Date: 15-20days

Type: S/FTP

Number of Conductors: 8cores

Conductor: Bare Copper

Jacket: PVC, LSZH, CMR,CMP

Insulation: HDPE

Rate: 500MHZ

1.High Quality 4pair Cat56a S/FTP Lan Cable,500MHz ,23awg.
2.Outer jacket: PVC,LSZH,CMR ,CMP are available.
3. Test :Pass fluck test

Solid SFTP Cat6a Ethernet Lan Cable 23Awg High Speed For Networking

Quick Detail:

1. Lan 500Mhz S/FTP cat6A Cable 4x2X23AWG

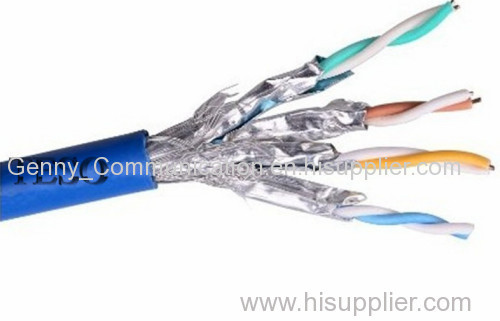

2.Structure: Bare copper conductor +HDPE insulation+ AL-Foil +Drain wire(customized)+ Braided shield + Jacket

3. Conductor: 1/0.575mm Bare copper , soft annealed bare copper.

4.Insulation: America Dow's HDPE

5.Outer jacket: PVC,LSZH,CMR ,CMP are available and any color will be optional.

6.Test :Pass fluke test and with 25 years quality warranty.

Application

Data cable for transmission of digital and analog signals up to 500 MHz. The cable is designed for horizontal cablings sub-systems as connection between a floor distribution and the telecommunication outlets (TO's). According to TIA/EIA-568, ISO/IEC 11801 2nd edition, EN 50173, EN 50288-4-1, IEC 61156-5. For application in LANs like IEEE 802.3: 10Base-T, 100Base-T, 1000Base-T, 10GBase-T; FDDI; ISDN; ATM; Cable sharing.

Specification

Conductor bare copper AWG 23/1, massive

Insulation HDPE, ca. 1.37 mm outer Ø

Core identification code acc. to IEC 708-1

Pair screening plastic laminated aluminium foil

Pair 4 pairs

Screening braid of copper wire, tinned wire 0,10 mm

Outer sheath PVC, LSZH PVC ,CMR, outer Ø: ca. 7.4 mm

Electrical properties at 20° C

Resistance (loop) max. 150 Ω/km, acc. to VDE 0812

Insulation resistance min. 5 GΩxkm

Mutual capacitance nom. 45 nF/km

Characteristic impedance 100 Ω ±5 Ω

(at 100 MHz)

Velocity of propagation ca. 0.79 c

Signal propagation time <425 ns/100m

Delay difference <5 ns/100m

Screening attenuation >75 dB

(up to 600 MHz)

Test voltage 700 V (AC)

Cat6a S/FTP Twisted Pair Cable, Bulk cable Transmission properties

f [MHz]	Attenuation nom. [dB/100m]	NEXT nom. [dB]	ACR nom. [dB/100m]	ELFEXT nom. [dB/100m]	RL nom. [dB]
1	1.8	105	103	95	25
4	3.3	105	103	93	28
10	5.3	105	100	92	30
16	6.7	105	98	91	32
20	7.5	105	97	90	34
31,25	9.6	105	95	86	35
62,5	13.8	103	89	82	34
100	17.3	100	83	77	33
155	22.6	98	75	73	30
200	24.8	95	70	70	29
300	30.7	93	62	67	27
400	35.8	90	54	64	26
500	39.7	87	47	62	24

Mechanical and thermal properties

Minimum bending radius	during installation: 8 x cable Ø
Minimum bending radius	static: 4 x cable Ø
Permissible temperature range	during installation:0˚ C up to +50˚ C
Permissible temperature range	static: -20˚ C up to +75˚ C
Flame propagation	flame retardant acc. to IEC 60332-1-2
General requirements	Dangerous and forbidden substances acc. to RoHS directive (2002/95/EG) are
General requirements	not allowed to the manufacturing.
